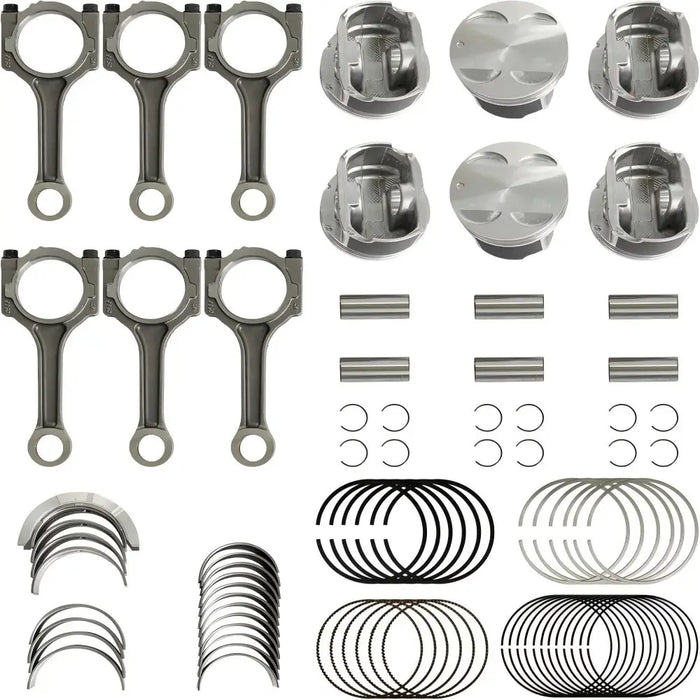

Product Overview
This complete piston, connecting rod and bearing assembly kit is manufactured to OE standards for 3.6L V6 engines. With precise dimensions and reliable construction, it delivers stable performance and long service life, an ideal replacement for worn original parts during engine repair and overhaul.
Compatible Vehicles
- Buick Enclave 3.6L V6 | 2009-2011
- Buick LaCrosse 3.6L V6 | 2010-2011
- Cadillac CTS 3.6L V6 | 2008-2011
- Cadillac STS 3.6L V6 | 2008-2011
- Chevrolet Camaro 3.6L V6 | 2010-2011
- Chevrolet Traverse 3.6L V6 | 2009-2011
- GMC Acadia 3.6L V6 | 2009-2011
- Saturn Outlook 3.6L V6 | 2009-2010
OE Reference Part Number

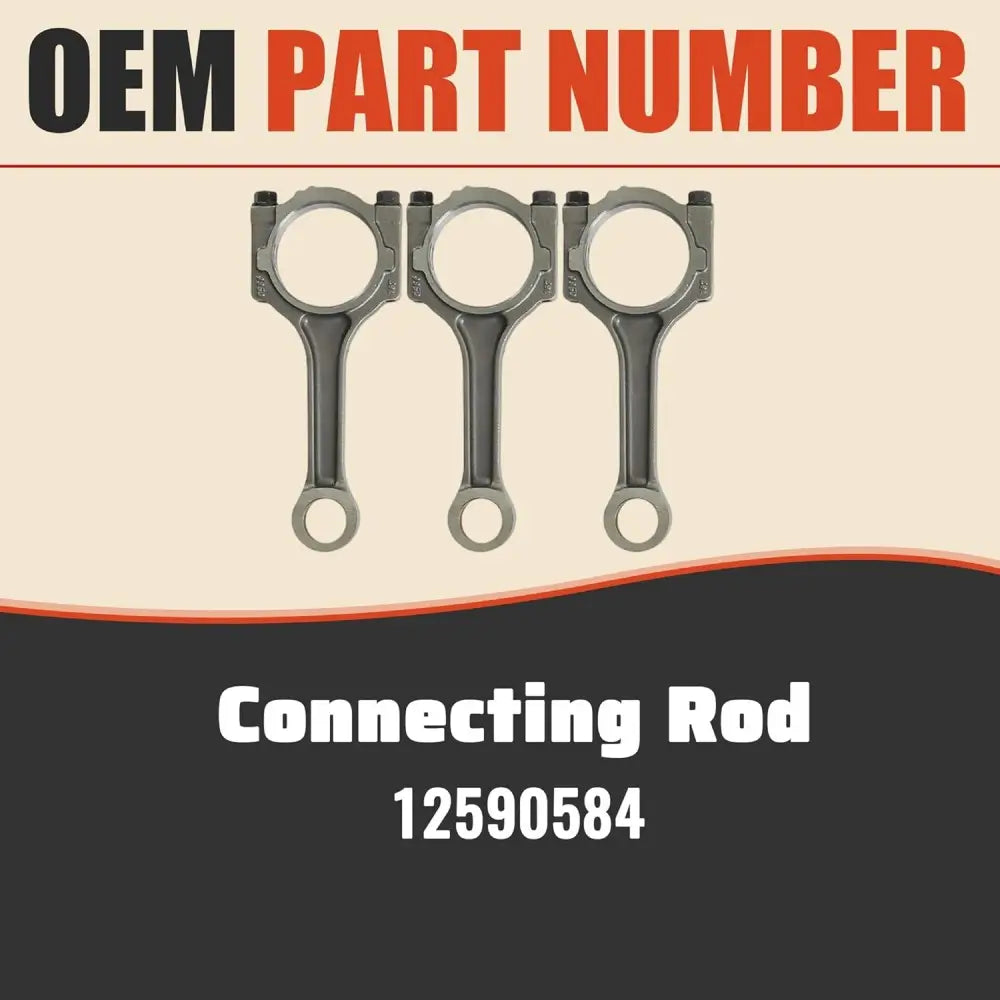

Connecting Rod: 12590584

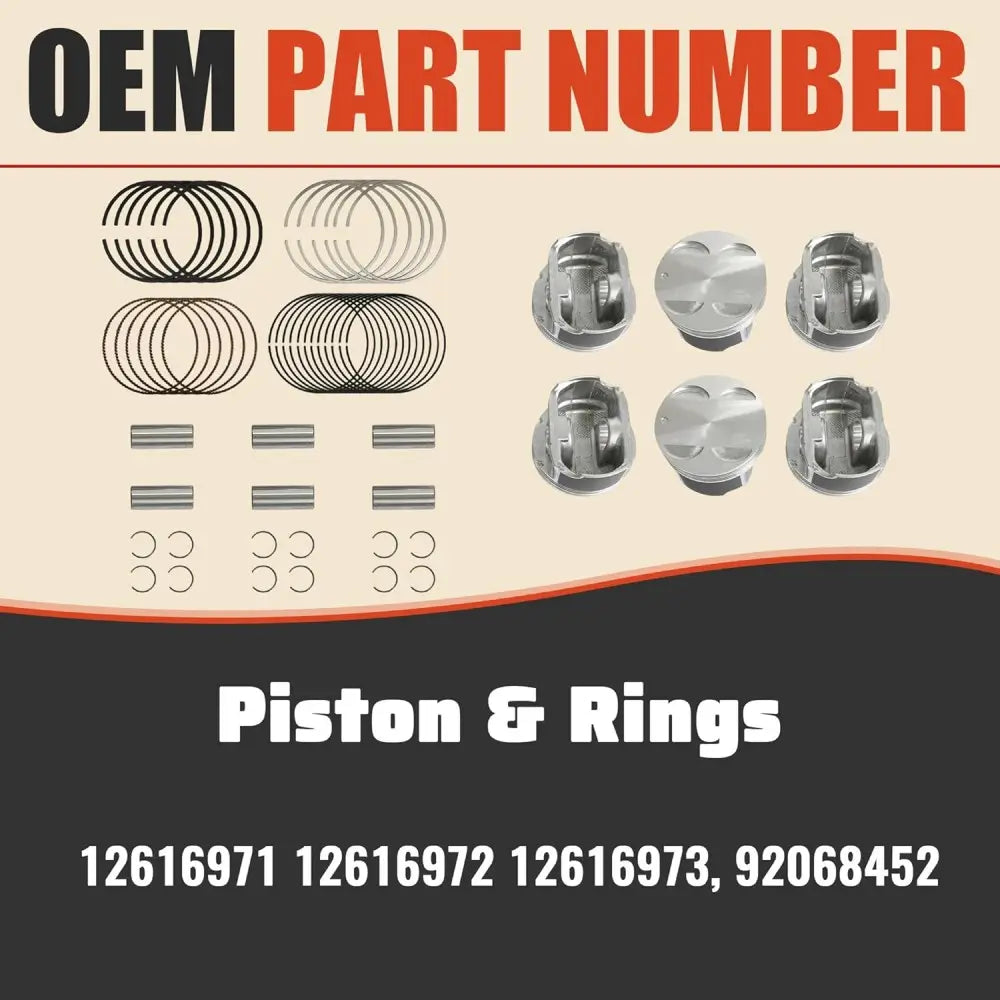

Driver Side Piston: 12616971
Passenger Side Piston: 12616972
Piston Rings: 12616973, 92068452

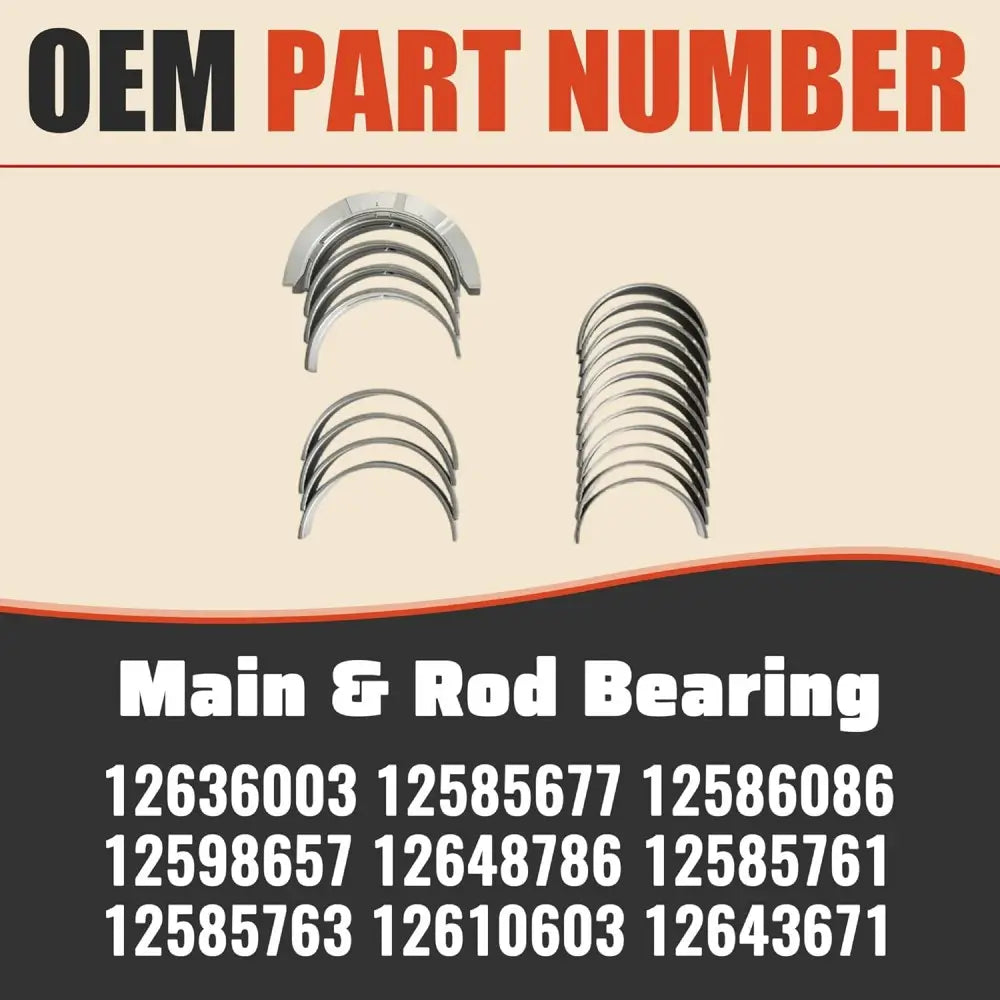

Main & Rod Bearing: 12636003, 12585677, 12586086, 12598657, 12648786, 12585761, 12585763, 12610603, 12643671, 12648787, 12585762, 12585764, 12610604, 12643669
Piston & Ring Specifications
- Cylinder Bore: 94 mm
- Piston Length: 53 mm
- Compression Height: 30 mm
- Connecting Rod Bolt Length: 53 mm
- Bolt Diameter: 24 mm
- Top Ring Thickness: 1.20 mm
- Second Ring Thickness: 1.50 mm
- Oil Ring Thickness: 2.50 mm

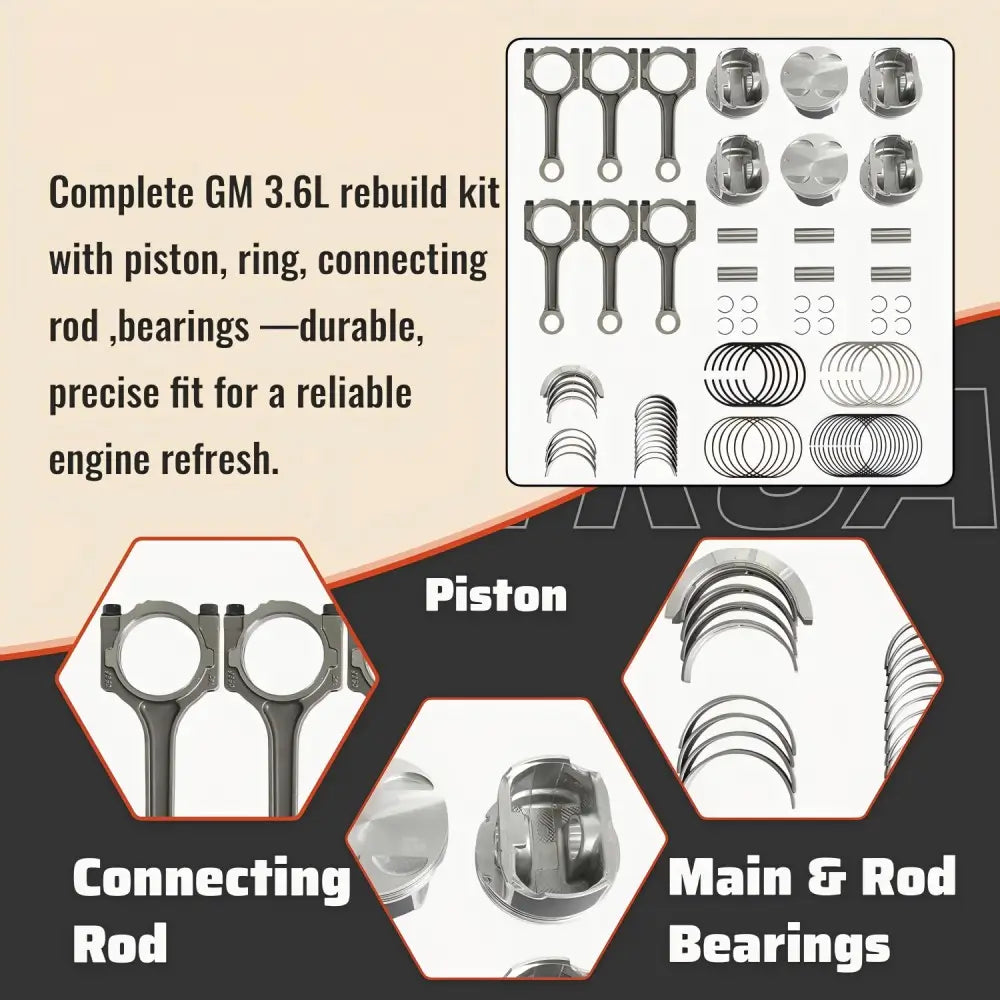

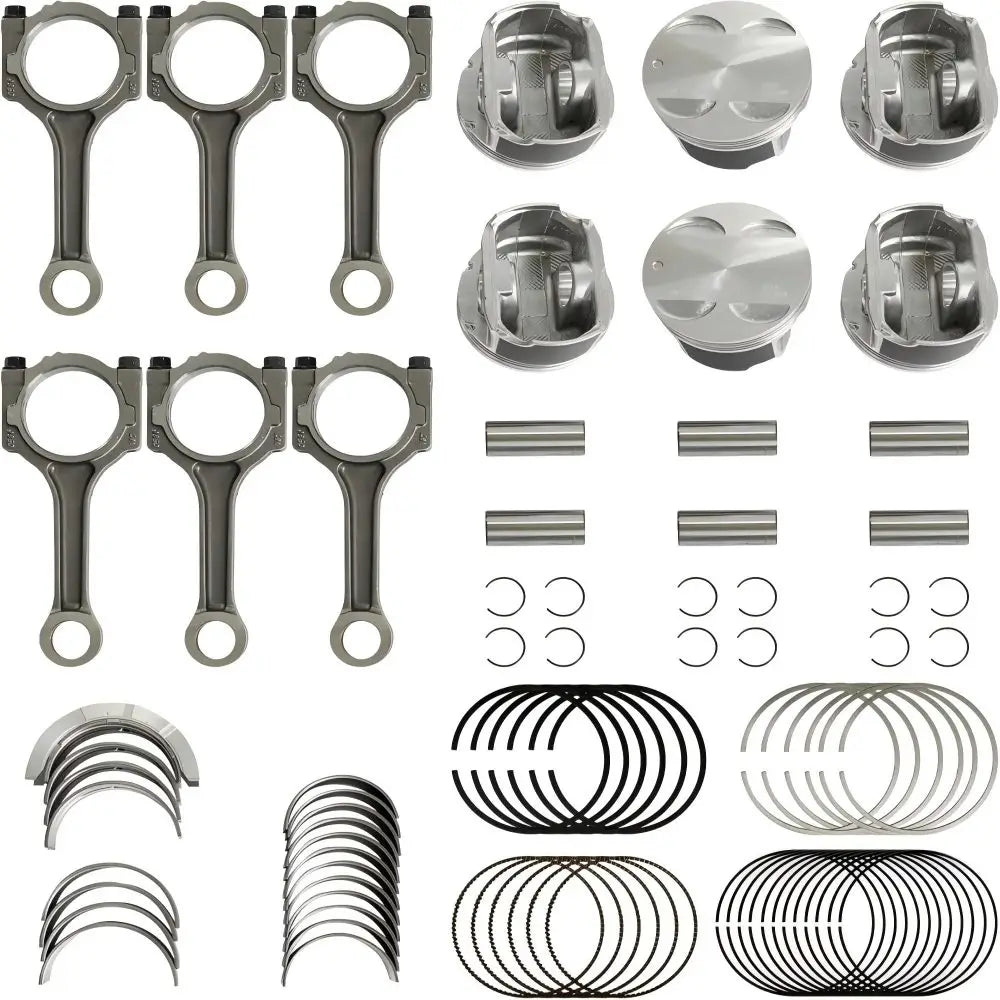

Package Contents
- 1 × Piston & Ring Kit
- 6 × Connecting Rod
- 1 × Main & Rod Bearing Set (Refer to main picture)
