Timing Chain Kit W/VVT Oil/Water Pump for Toyota 08-20 1.8L 130700T010

Fitment
Fit for Toyota 2ZR-FE 1.8L 2008-2019
• 2009-2019 Toyota Corolla 1.8L
• 2009-2013 Toyota Matrix 1.8L
• 2010-2015 Prius 1.8L
• 2012-2015 Prius Plug-In 1.8L
• 2012-2015 Prius V 1.8L
• 2009-2010 Pontiac Vibe 1.8L
• 2008-2014 Scion xD 1.8L
Only for DOHC L4 1.8L Engine

OE Part Number
Oil Pump: M538, SK115167, EPK234, OPTO55
Water Pump: AW6351, 1610039466, 9025927, 1305A190
Timing Chain Kit: 9-4220S, 9-4220, 135060T020, 1350637010, 1350637070, C-751, C751, 135070H020, 1350728010, 916-944, 916944, 1307037010, 130700T010, 917-256, 917256, 130500T050, 135520T010, S-1095, S1095, 135210T030, S-1097, S1097, 1351937010, S-923, S923, 1516328010, 9-5935, 95935, 135400T020, 9-5937, 95937, 94220S, 94220, 135590T020, 1355937050, 9-5938, 95938, 135610T020, 1356137050, 9-5940, 95940, 135620T010, 9-5936, 95936, 135490T020, 1354937010

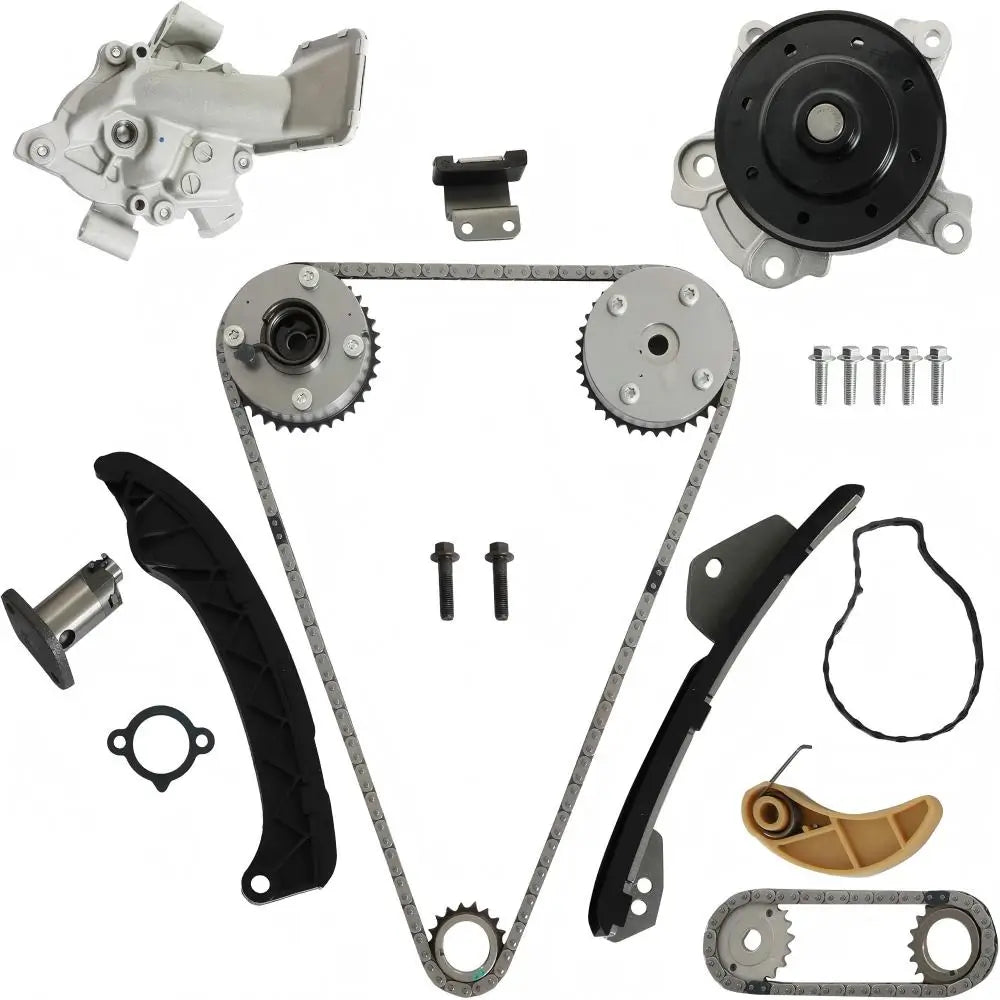

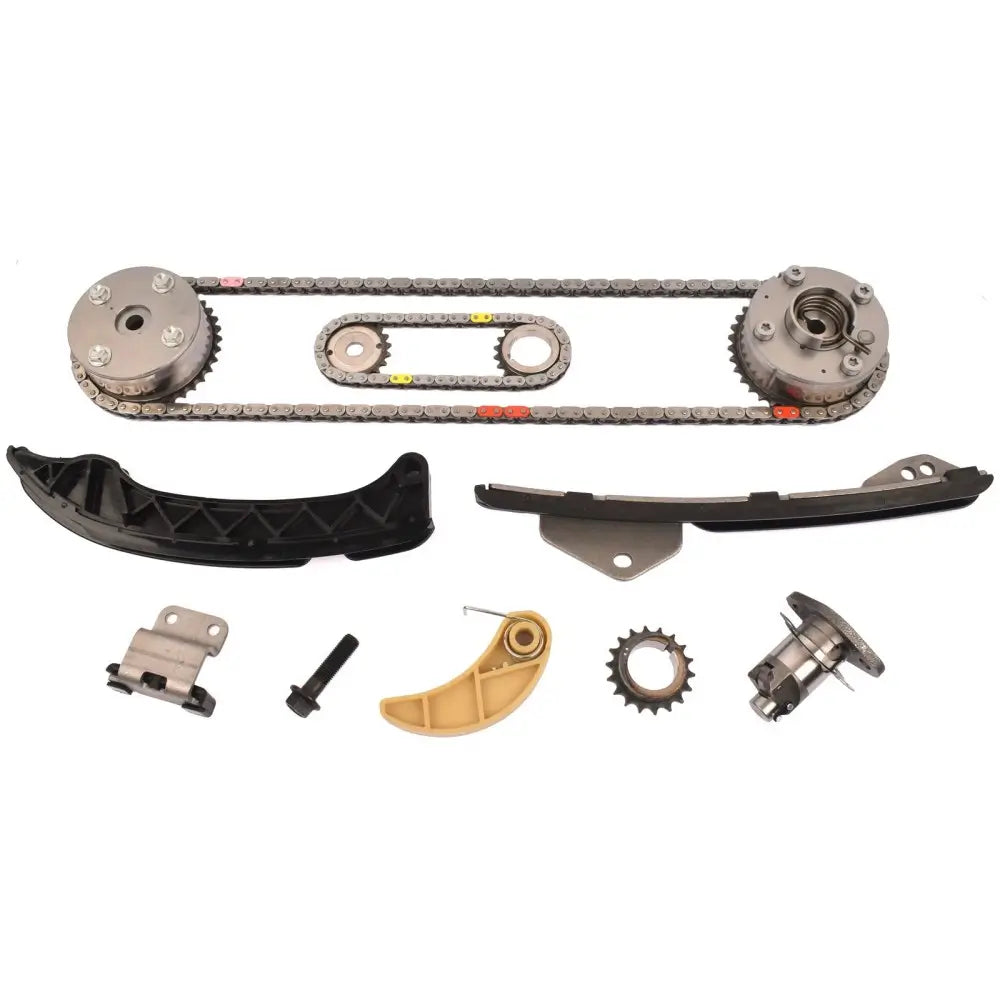

Kit Contents (1.8L Timing Chain Kit)

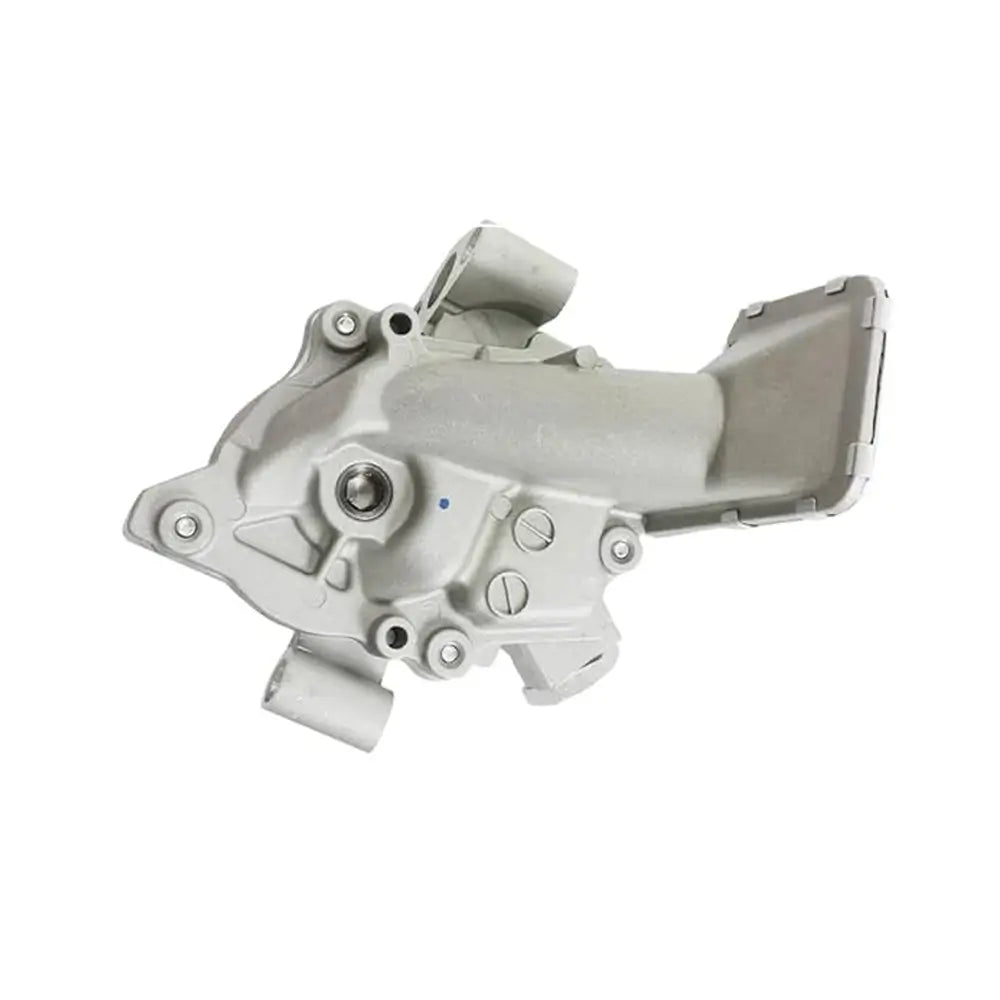

1 x Oil Pump

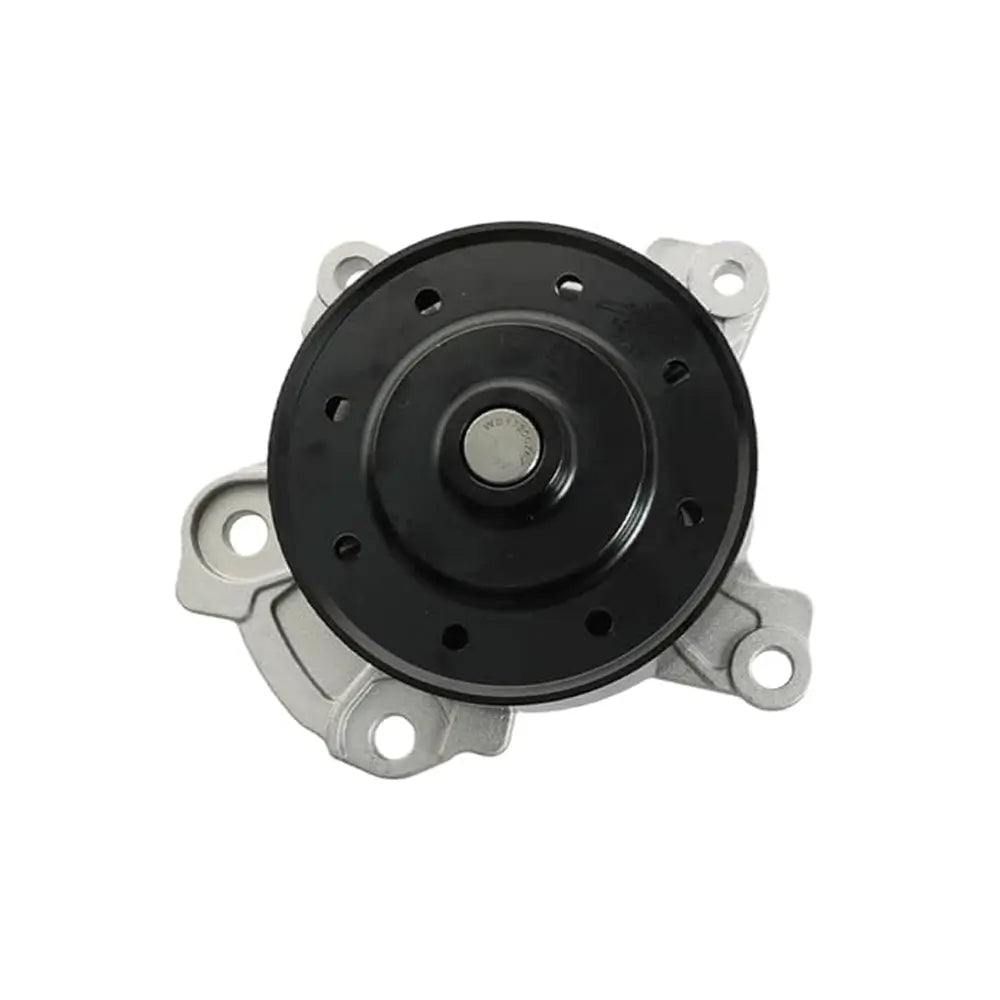

1 x Water Pump with Gasket

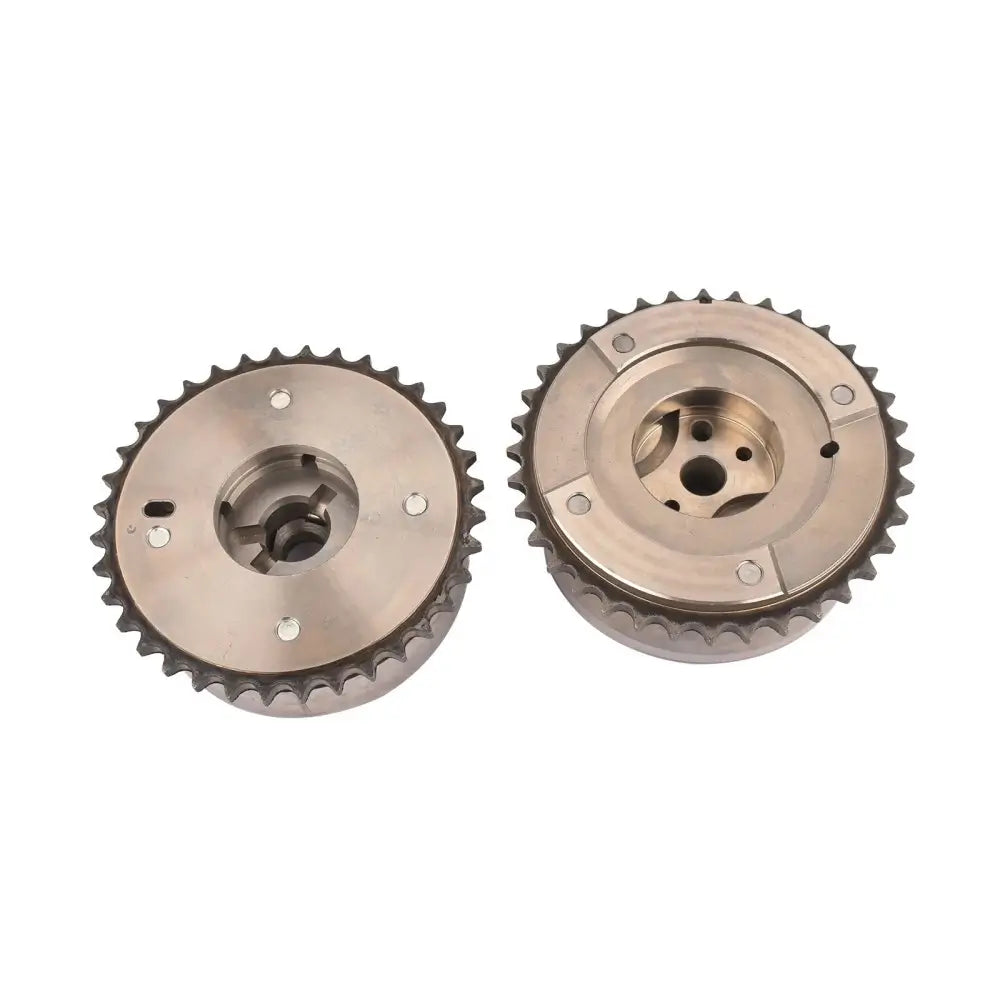

1 x VVT Exhaust Cam Sprocket
1 x VVT Intake Cam Sprocket

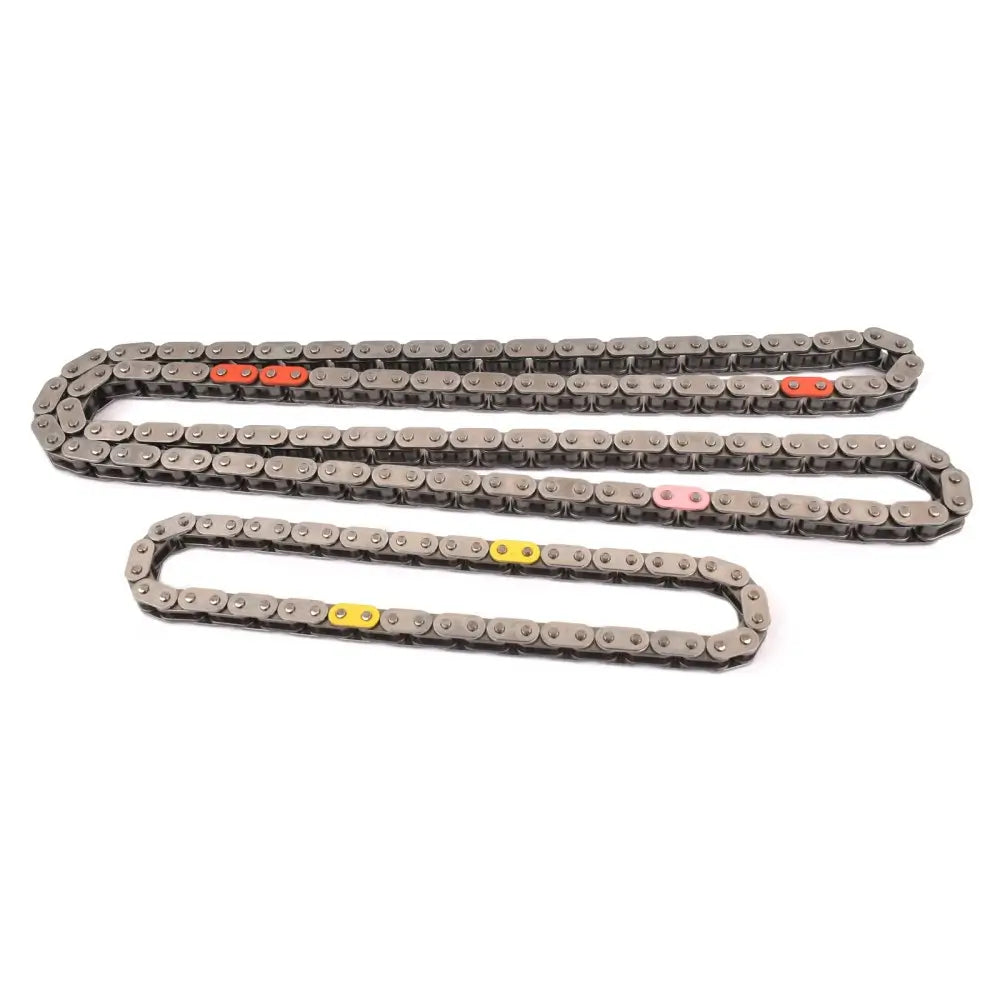

1 x Timing Chain (140 links)
1 x Ratchet Style Tensioner

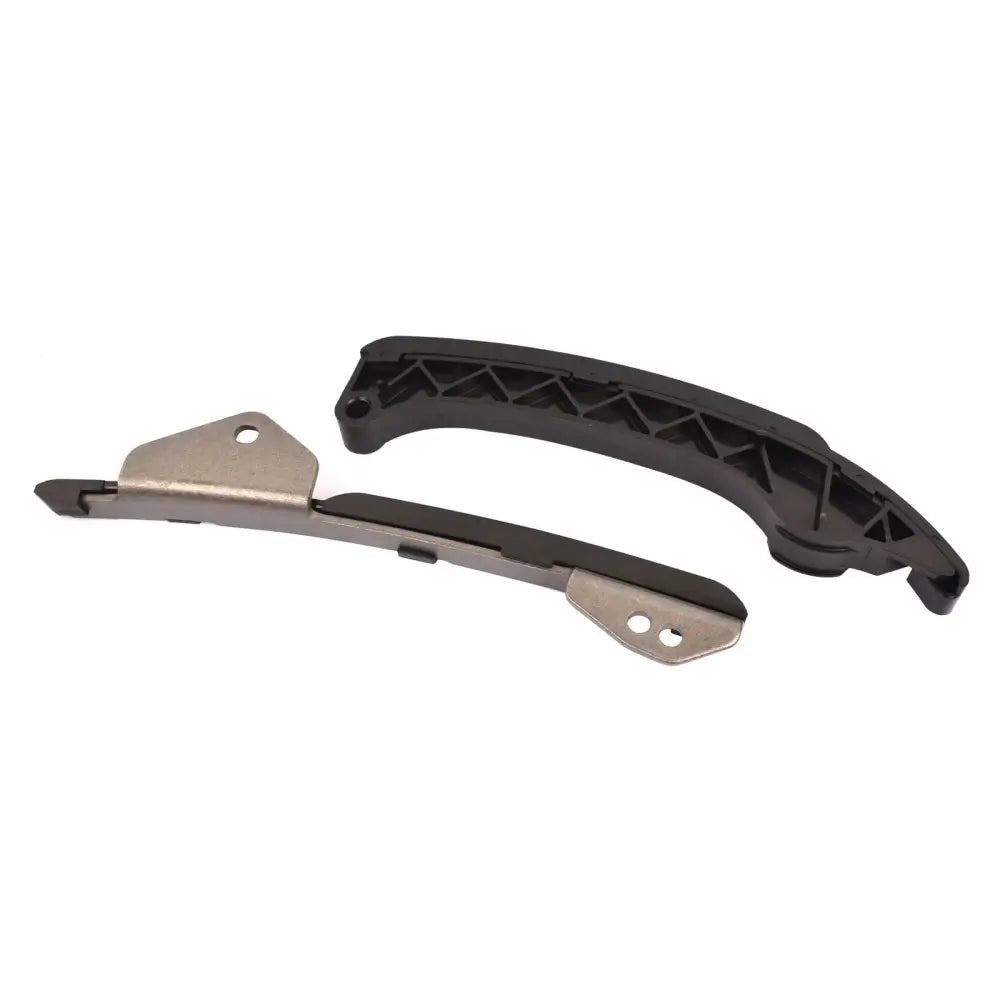

1 x Upper Guide Rail (Between Cams)
1 x Tensioner Guide Rail
1 x Fixed Guide Rail

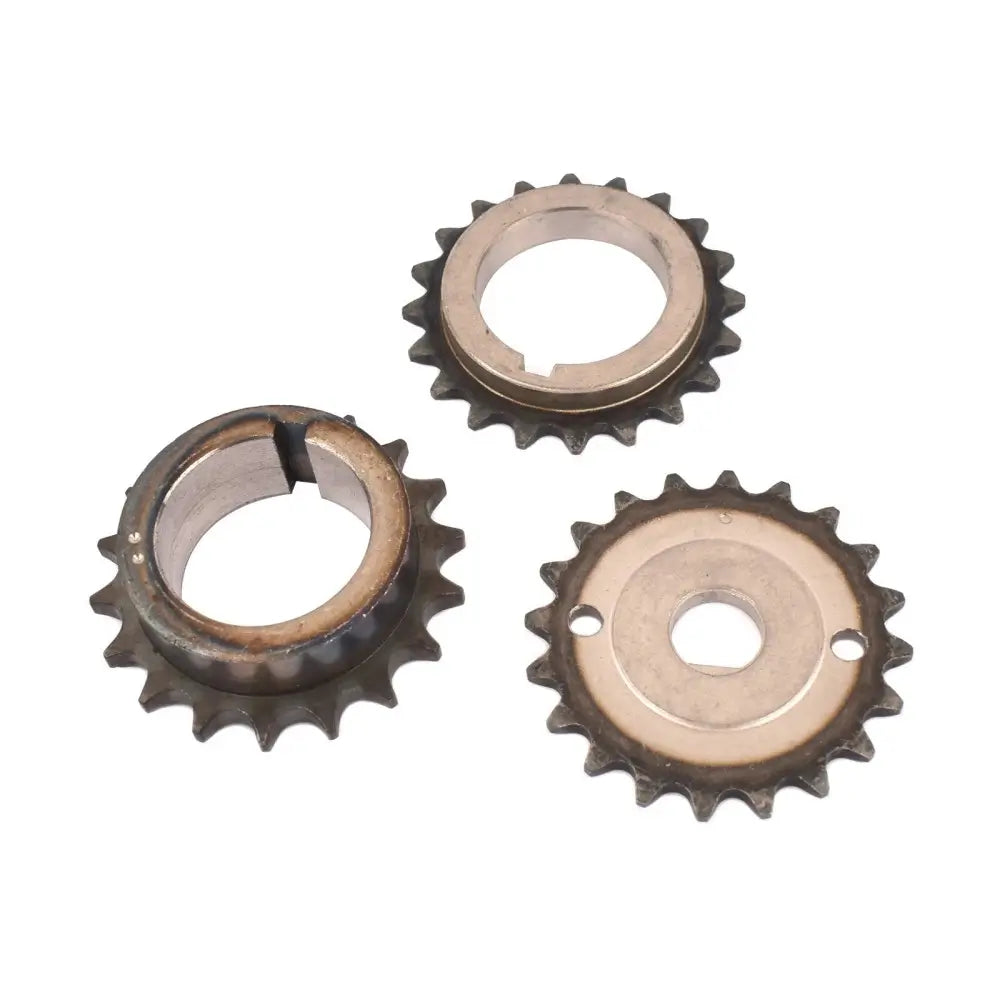

1 x Crank Sprocket (18 Teeth)
1 x Oil Pump Chain (52 links)

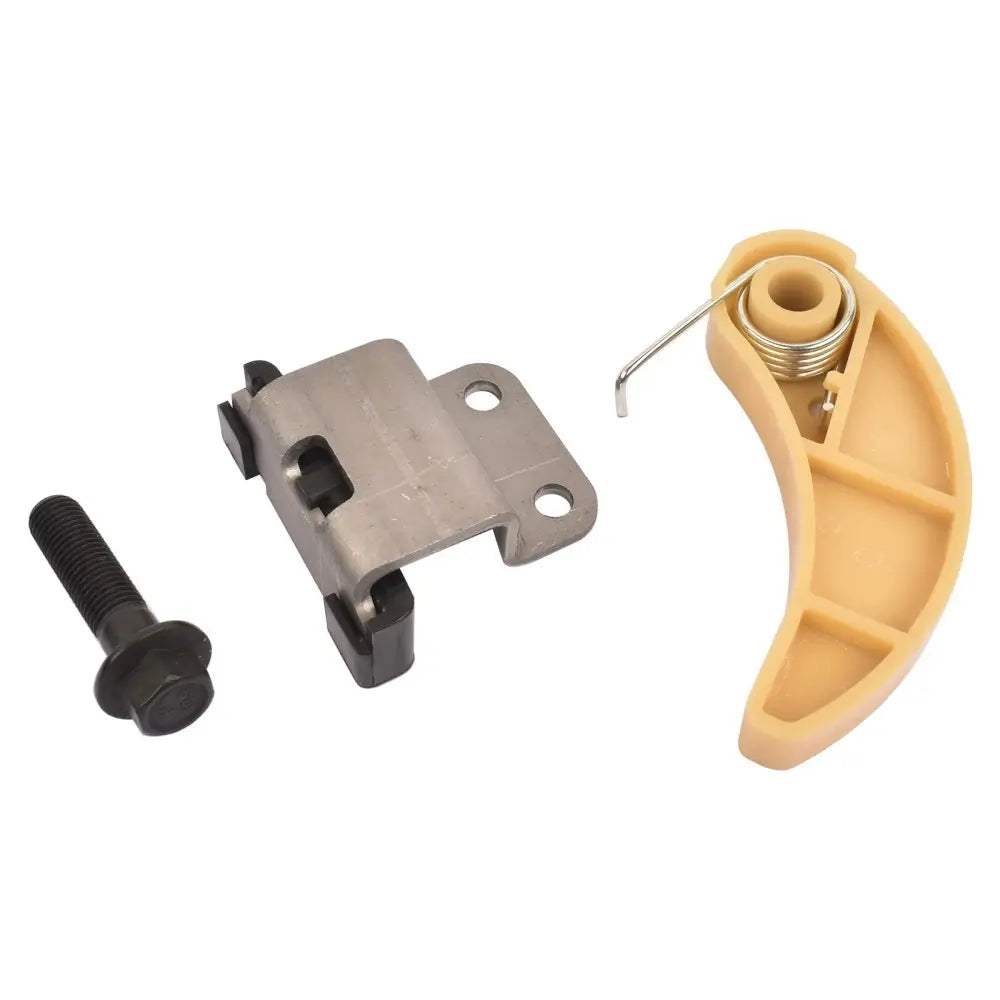

1 x Oil Pump Chain Tensioner
1 x Tensioner Spring (For Oil Pump)
1 x 20T Crank Sprocket (For Oil Pump Chain)
1 x Oil Pump Sprocket (20 Teeth)

Applicable Years
2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019

Warranty
1 Year
